Raymarine DSM300 Digital Sounder Module for Raymarine E-Series and C-Series fishfinder for sell

Digital Sounder Module adds HD Digital technology to Raymarine E-Series and C-Series multifunction displays 600 or 1000 Watt operation depending on choice of transducer Dual frequency 50/200 kHz Patented Raymarine HD Digital sounder technology

Integration Capabilities

• E-Series SeaTalk hs network integration (optional SeaTalk hscrossover coupler or SeaTalk hs Network Switch is required)
• C-Series integration
• hsb2 networking compatible with "Plus" series radars, chartplotters and fishfinders

Echo Sounder Features

• Dual frequency operation (200/50 kHz)
• 1000 or 600 watt available output power depending choice of transducer
• HD Digital Auto Adaptive Gain control (no adjustment required)
• Patent Pending Digitally Adaptive Transmitter Receiver with infinite receiver bandwidth settings and digital filter
• A-Scope (Real-Time Display): Split second real time representation of fish and bottom features passing through the beam of your transducer right now, the history of your A-Scope is represented in the standard sounder image scrolling across your screen.
• Zoom Display: Auto or manual zoom magnification of any part of the 200 or 50 kHz fishfinder screen image, (X 2, X4 or X6 magnification).
• Bottom Lock: The bottom lock feature, shows the bottom as a straight line, in order to help you detect fish close to the bottom and remove wave action from the fishfinder image.
• White Line: The White line feature helps distinguish between fish and the bottom, when fish are swimming close to the bottom.



DSM300 Connector Panel
Click to Enlarge



DSM300 Digital Sounder Module Specifications

	Connections
	Power	Yes, twist-lock 3-pin
	Transducer	Yes, twist-lock multi-pin for depth, speed, water temperature
	SeaTalk hs	RJ45 for E-Series and G-Series
	hsb2	4-pin for C-Series and Pathfinder Plus
	Environmental
	Operating temperature range	-10°C to +50°C
	Non-operating temperature range	-20°C to +70°C
	Humidity	up to 95% at 35°C non-condensing
	Waterproofing standard	CFR46 and IPX6
	Key Features
	Nominal output power	1000 or 600 watts (depends on transducer type)	High Performance Transducer Required for 1Kw output. The DSM300 automatically adjusts output power for 600 watt and 1Kw transducers
	Frequency	dual 50kHz/200kHz
	Pulse length	100 µsec to 4 msec
	Max. transmit rate	1580 pulses/min @ 15m (50') range
	Gain	auto/manual
	Range scales	26 scales (2 to 1700m)
	Range control	auto/manual/range with shift
	Zoom size	auto/manual x2, x3, x4, xR (user selectable)
	A Scope	3 modes. Displays sonar returns in real time	Bottom coverage display shows the diameter of the transducer beam where it meets the bottom.
	Bottom lock	full/split (adjust range)
	White line	Yes
	Background color options	classic/blue, classic/black, classic/white, sunburst, greyscale, inverted greyscale, copper, night vision
	Scroll speed	auto/manual (10-100%)
	Variable range marker	Yes
	Alarms	fish/shallow/deep
	Depth ID	Yes
	Physical
	Dimensions (WxHxD) mm	273x62x187
	Product weight kg (lbs)	1.0 (2.2)
	Mounting methods	4 keyhole mounting tabs
	Power
	Nominal voltage (volts DC)	12V and 24V systems
	Absolute voltage range (volts DC)	10.7 – 32 volts
	Power consumption (typical) watts	30W

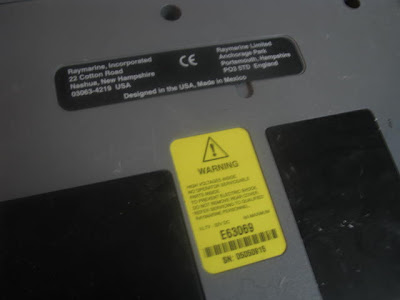

i have NO cable and E or C series fishfinder to test.i have two this "blackbox",

with 7 days DOA return right warranty.

Any interesting ,please free feel contract me.

-----------
